Used Machinery

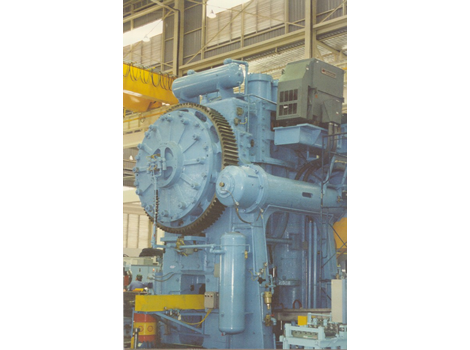

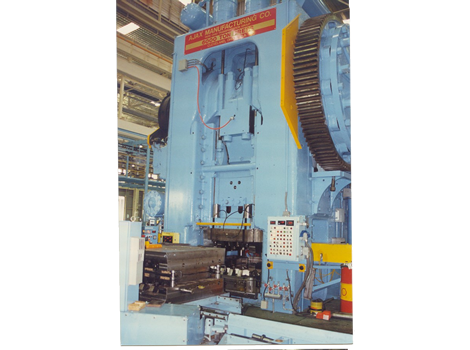

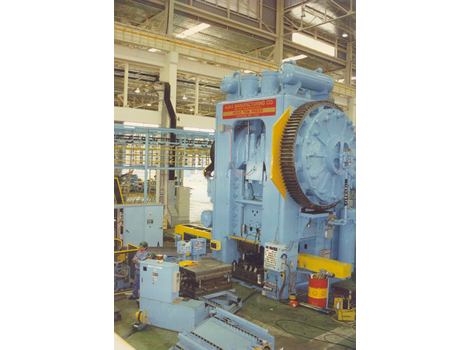

6,000 ton Ajax Hot Forging Press

(Rebuilt)

The press was originally serial no. 4995 and was built for Sumitomo Heavy Industries and later owned by International Crankshaft in Georgetown, KY. ICI traded the press in for a new 7000 ton in 2000. Since then, the press components have been stored inside the Ajax building. Some were sold as used components and these will be replaced with new parts in the rebuilt machine.

Specifications

  • Stroke:18”
  • Strokes per minute: 36
  • Die Space, Ram Down: 48”
  • Distance between columns: 72” L-R
  • Floor Space: 18’-9” x 15’-8” (L-R x F-B)
  • Total Height: 28’-10” above foundation
  • Total Height above floor: 24’-0”
  • Approx. weight: 925,000 lb.

Request a Quote

VERSON S1-800-54-54T Mechanical Press

(800 ton)

These presses have been totally rebuilt under the supervision of Verson engineers. They have all new Allen Bradley PLC controls. They are equivalent to new presses.The presses are erected and under power in their plant in Chicago.

Specifications

  • 800 Ton VERSON NO. S1-800-54-54T
  • ECCENTRIC GEAR TYPE
  • SINGLE POINT SUSPENSION
  • SINGEL ACTION, DOUBLE GEAR, TWIN DRIVE PRESS

Request a Quote

Satoh Machinery Works 600 Ton Hydraulic Press

Specifications

  • Model No. SLIM6045
  • Year: 1993 - 1994
  • Japanese Made
  • Maximum Pressing Force: 600 tons
  • Maximum Lifting Force 40 tons
  • Daylight: 1800 mm
  • Stroke: 1200 mm
  • Bed Size: 2270 mm x 2100 mm (L-R x F-B)
  • Distance Between Columns: 2350 mm x 1400 mm (L-R x F-B)
  • Fast Advance Speed: 250 mm/sec.
  • Pressing Speed: 0.5 – 30 mm/sec.

Request a Quote

PRESS AUTOMATION SYSTEMS CUT-TO-LENGTH LINE

(72” x 60,000 lbs. x 0.135”)

Specifications

P.A.S – CUT TO LENGTH & SLITTING LINE – 480 AMPS – 3 PHASE COIL CART

  • P.A.S. – Coil Cart – 50,000# capacity
    • UN-COILER
  • P.A.S. – Un Coiler Model 2116 – SN 66423 (Expanding Plates)
  • P.A.S. – Un Coiler 50,000# coil capacity – Maximum Coil Width 72 inches
    • FEEDER
  • P.A.S. – Feeder Table to Pit – SN69603
    • FLATNER
  • P.A.S. – Flatner – SN 69602 – Model 7-472
    • FEEDER
  • P.A.S. – Feeder Roller to Shear – SN 69604 – Model 972
    • SHEAR
  • CINCINNATI-FORTE SHEAR – SN HSS1021 – 72” WIDTH – MAX. GA. THICKNESS .135
    • CONVEYOR
  • ROLLER CONVEYOR TO SLITTER – 65 INCHES X 135 INCHES
    • SLITTER
  • REEVES 10 INCH ARBORS – 72 INCH WIDTH SLITTER - .036 THRU .186 MAX. GA. THICKNESS
    • PLATFORM
  • OPERATORS PLATFORM – 5 FT. X 60 FT.
    • AIR COMPRESSOR & DRYER
  • SULLIVAN PALATEK – 5O HP – 460 AMP – 3 PHASE – MODEL 50 DG (2000 HRS)
  • 200 GALLON RESERVE IN LINE AIR TANK
  • PARKER STARLETTE PLUS AIR DRYER – SN 398077550003
    • ELECTRICAL SUPPLY
  • SIEMENS – POWER MODULE 240 – 50 HP DRIVE
  • ALLEN BRADLEY – POWER FLEX – 60 HP DRIVE

    • Request a Quote

    MESTA CUT-TO-LENGTH LINE

    (72” x 40,000 lbs. x 0.187”)

    Specifications

    UN-COILER McKay Un-coiler (No Serial Number) with 20 ton hydraulic coil cart Un-coiler is Cone Shaped to handle various ID coils Un-coiler (as installed) has a 68” max OD coil capacity Un-coiler 72 inch max width coil capacity Un-coiler has 40,000# max coil weight PEELER TABLE Peeler Table w/coil guide 72” x 118” FLATNER MESTA Flatner – (No Serial Number) 96” wide rollers Flatner – 8 rollers on top – 9 on the bottom – Plus Feeder Rolls SHEER NIAGRA 8 Foot Hydraulic Shear – 3/16 capacity (No Serial Number) 12 foot adjustable height hydraulic roller conveyor SLITTER BRADBURY – 8 inch arbor – 72 inch wide slitter – (.025 thru .125) PLATFORM OPERATORS Steel Platform – 6 feet x 30 feet AIR COMPRESSOR – AIR DRYER AIR COMPRESSOR – 5 H.P. Speedaire AIR DRYER – Wilkerson ELECTRICAL Quantum III Digital DC Drive

    Request a Quote

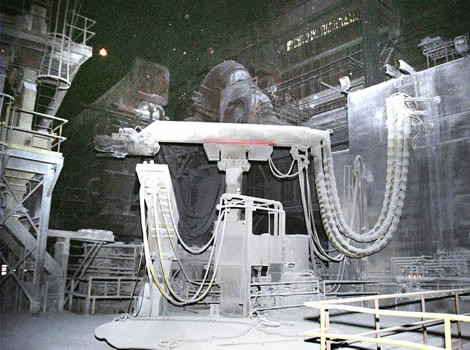

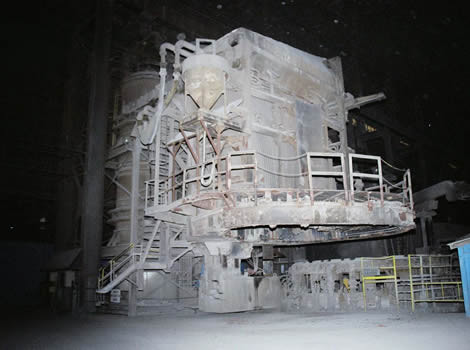

    130 TON FUCHS DC ELECTRIC ARC FURNACE

    (SHAFT TYPE)

    The 130 ton EAF/electric arc furnace was built by FUCHS in Germany circa 1995-97. It is a DC (2 electrodes) shaft type furnace. It operates with two 40 MVA transformers working together, and has 1 new spare. It is part of a melt shop near
    There is a new spare transformer and a new pin-bottom for the furnace.

    Specifications

    • Primary Voltage: 34 KV.
    • Electrode: 26” in diameter
    • Power Supply:(2) 40 MVA transformers producing 80 MVA.
    • Las Vegas, Nevada

    Request a Quote
