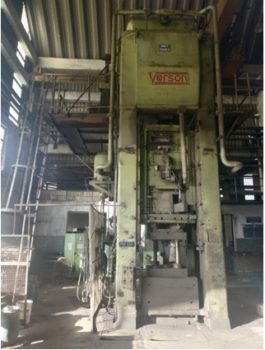

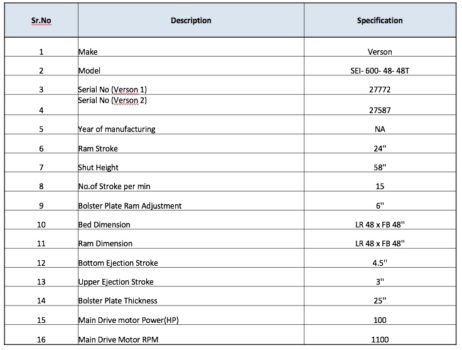

600 TON VERSON SSSC – STRAIGHT SIDE SINGLE CRANK PRESS
Specifications
Presses
800 Ton Blow SSDC Press – Straight Side Double Crank
Specifications
- CAPACITY: 800 TONS
- MODEL NO: SC2-800-72-72
- STRIKE: 8”
- SHUT HEIGHT (S.D.A.U.) OVER THE BOLSTER: 37”
- SLIDE ADJUSTMENT: 12”
- BED AREA: 72” L-R X 72” F-B
- SLIDE AREA: 72” L-R X 72” F-B
- PRESS APEED: 20-40 SPM
- APPROX. TOTAL WEIGHT: 183,000 LBS.
- YEAR OF MANUFACTURE: 2000
2,000 Ton Macrodyne Model MPH2000 Hydraulic Press
Specifications
- 2002 Macrodyne Model MPH2000 Hydraulic Press
- Capacity 2000 Ton/li>
- Bed size 118”x70”/li>
- Daylight 98”/li>
- Stroke 70” Control/li>
- Panel, With (3) Motoman UP165-100 Robots with Controllers/li>
- (2) Motoman UP50 Robots with Controllers/li>
- (3) Skids of Metal Grating, Drip Trays and Metal Stands, with Accessories/li>
1,500 Ton Macrodyne Hydraulic Press
Specifications
NEW ............................ 2004
CAPACITY .....................
5000 TON BLISS HS-5000-4R-84-204 HYDRAULIC PRESS
Specifications
Serial # CN-1889
Manufactured 1955-56 for the U.S. government – kept in storage
First installed and put into operation in 2000
Model: HS-5000-4R-84-204
Type……………………………………Hydraulic
Tonnage………………………………..5,000
Cushion………………………………...0
Bed……………………………………..204” X 84”
Ram…………………………………….204” X 84”
Stroke…………………………………..48”
Shut Height…………………………….84”
Daylight………………………………..132”
Bolster………………………………….0
Between Posts…………………………86” x 86”
Post diameter………………………….24”
Speeds
Condition………………………………GOOD
For drawing, Click Here!
3,000 ton Hydraulic Press LIEN CHIEH(Taiwan) LHS-3000 Bolster 4,300 x 3,000mm 1997 for sale
- Item: Hydraulic press
- Maker: Lien Chien Machinery(Taiwan)
- Model: LHS-3000
- Year: 1997( Retrofitted 2007)
- Cushion: 900 tons(Retrofitted 2017 by press maker in Taiwan)
Specifications
- Main Press
- Capacity(without leveling): 600-3,000 tons
- Capacity(with leveling): 350-2,750 tons
- Cushion: 900 tons(Retrofitted 2017 by press maker in Taiwan)
- Working Pressure: 272 kg/㎠
- Dia of the main ram: ∅530x5 units mm
- Stroke: 2,500mm
- Daylight: 3,200mm
- Area of Bolster: 4,300x3,000mm
- Area of Slide Table: 4,300x3,000mm
- Raising capacity: 80 tons
- Working Pressure: 199 kg/㎠
- Dia of the raising Ram: ∅160x2 units mm
- Main press speed
- Quick Down: 250 mm/s
- Fast Pressing(300~600 tons): 10~30 mm/s
- Pressing(w,000~3,000 tons): 1~8 mm/s
- Quick up: 200 mm/s
- Leveling system
- Leveling capacity: 250 tons
- Stripping capacity: 500 tons
- Working pressure: 203 kg/㎠
- Dai of the leveling ram: ∅280x4 units mm
- Pressing speed: 1~8 mm/s
- Stripping speed: 0.1~8 mm/s
- Stroke: 100 mm
- Pump and Motor
- Main pump: A2V-500
- Displacement: 575 1/min
- Main Motor: 300HPx6Px3300Vx60Hz
- Hold Pump IPH-2A-8
- Displacement: 13.5 1/min
- Hold Motor: 10HPx4Px200Vx60Hz
- Leveling Motor: 60HPx4Px200Vx60Hz
- Electric
- Electric Power: 3300Vx60Hz, 200vx60Hz
- Operation Electric Source: 100Vx60Hz
- RETROFIT YEAR: 2007
- Pressing(2000~3000ton): 1~8mm/sec
- Quick up: 200mm/sec
- Main Pump: AZV-500
- Displacement: 575 1/min
- Main Motor: 300HP×6P×3300V×60Hz
- Pilot pump: PV2R12-8-26
- Displacement: 14+45
- Pilot motor: 10HP×4P×200V×60Hz
- Main pump was changed into a brand-new Uchida(Japan make) in 2007.
- Most of thing were changed by Japanese new ones.
4,000 Ton Weingarten model PZS 630 Screw Press
Specifications
Main Data of Machine PZS 630, Order 152 041
| Specifications | Inches | MM |
| Striking Force | ||
| -normal | 4,400 US-T | 4,000 mp |
| -impact, approx. | 8,800 US-t | 8000 Mp |
| -max. perm. Continuous force | 7,000 US-t | 6,400 Mp |
| Gross Potential energy | 732,000 Ft-lbs | 1000,000 mkp |
| Nominal pressure approx. | 542,000 Ft-lbs | 75,000 mkp |
| Anchor preload | 9,900 US-T | 9,000 Mp |
| Theoretical number of Strokes | 14-18 /min | |
| Utilizable number of strokes | 10/min. | |
| Spindle dia., min, | 24.9 | 630 |
| Max. stroke | 29.5 | 750 |
| Min. stroke | 11.0 | 280 |
| Stroke for obtaining max. capacity | 29.5 | 750 |
| Time for ram downward movement at 750 mm stroke approx.. | 2.1 sec | |
| Impact speed approx. | 23”/sec | 0.6 m/sec |
| Distance between table and ram stroke down | 47.2 | 1,200 |
| Stroke up | 76.8 | 1,950 |
| Width between uprights below guide ways | 65.0 | 1,650 |
| In-between guide ways | 45.3 | 1,150 |
| Table clamping surface width x depth | 63.0 x 55.0 | 1,600 x1,400 |
| Ram clamping surface | 51.5 x 55.0 | 1,300 x1,400 |
| Power requirements approx.. | 860 K | |
| Input of flywheel drive motors together approx.. | 2,800 Ampere | |
| Idling speed of motor | 600 rpm | |
| Machine height above floor approx. | 27’ | 8,200 |
| Net weight of complete machine approx.. | 341 US-T | 310 t |
| Number of preselect able strokes | 3 | |
| Total spring number C of Press, min. | 24,000 US-t/” | 850 Mp/mm |
30000 ton Russian built hydraulic press 30,000 Ton KOLOMNA (Russian built) hydraulic press built in 1980
Specifications
- Hydraulic press capacity 30 000 t
- Press new 1980 year
- Press weight 3788 ton
- Length – 21050 mm
- Wide – 9050 mm
- Height – 27300 mm

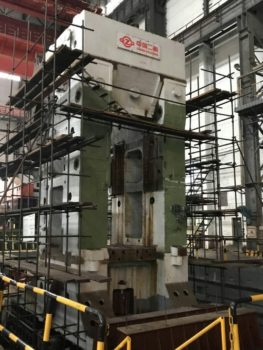

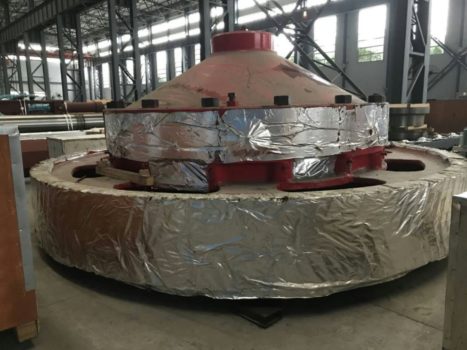

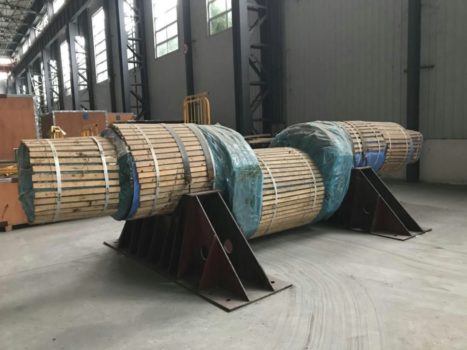

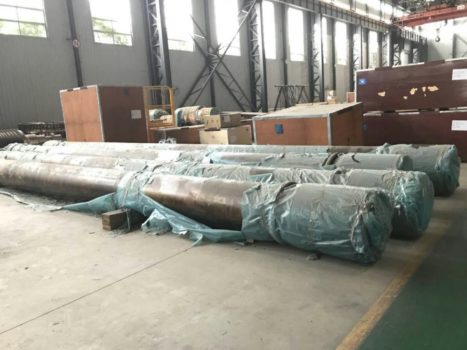

Brand New! 12,500 Ton China Heavy Machinery Mechanical Hot Forging Press
Forging Press
Specifications
- Table size 2240x3100mm
- Slide size 2190x2450mm
- Slide stroke 520mm
- Die height 1800mm
- Speed 30SPM
Brand new 12500t forging press has been fully tested and dismantled. It is a closed die forging press. Request a quote today!
1,500 TON WATSON STILLMAN HYDRAULIC PRESS
Specifications
- 4-post hydraulic forging press built in 1951
- 55” stroke, and a 115” maximum daylight opening and a 78” x 72” bed/die area
- The year it was operational at the plant was 1951
- This has been used as a forging press and a straightening press
