(1) 770-Ton followed by (4) 550-Ton Presses

5 Aida (Japanese built) tandem press line. Each press has 2 rolling bolsters through the side windows and cushions.  The presses are under power in a USA plant.

Line is fully automated with robots and conveyor systems

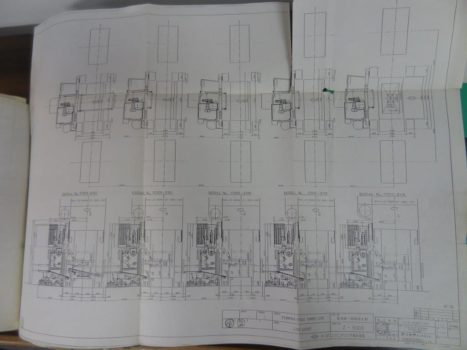

Drawings and Additional Specifications available





Specifications

770 Ton Specs (1988)

  • Model: SMX-L2-700M
  • Type: Link Motion, 2-Point Press Capacity
  • Stroke of slide: 600 mm (23.62")
  • SPM: 15-25
  • Die Height: 1100 mm (43.33")
  • Slide Adjustment: 350 mm (13.77")
  • Slide Area: 3050 mm x 1700 mm (120" x 66")
  • Bolster Area: 3050 mm x 1700 mm (120" x 66")
  • Bolster Thickness: 600 mm (23.62")
  • Windows: 66" (LR) x 79"
  • Floor to Top of Bolster: 600 mm (23.62")
  • Main Motor: DC (125 HP)
  • Height Above Floor: Approx. 7100 mm - (279")

(4) 550-Ton Presses

  • 550 Ton Specs (1988)
  • Model: SMX-L2-500M
  • Type: Link Motion, 2-Point Press Capacity, 550-Ton
  • Slide of Stroke: 600 mm (23.62")
  • SPM: 15-25
  • Die Height: 1100 mm (43.33")
  • Slide Adjustment: 350 mm (13.77")
  • Slide Area: 3050 mm x 1700 mm (120" x 66")
  • Bolster Area: 3050 mm x 1700 mm (120" x 66")
  • Bolster Thickness: 600 mm (23.62")
  • Floor to Top of Bolster..600 mm (23.62")
  • Windows: 66" (LR) x 79"
  • Main Motor: DC (100 HP)
  • Heigth Above Floor: Approx. 6900 mm - (271")
