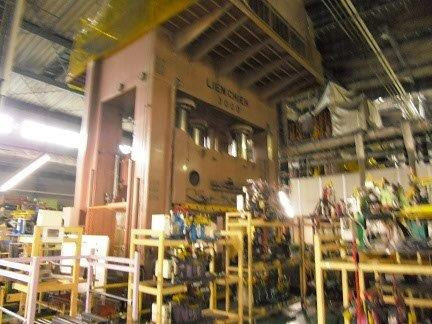

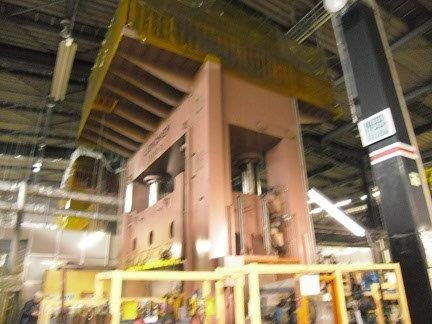

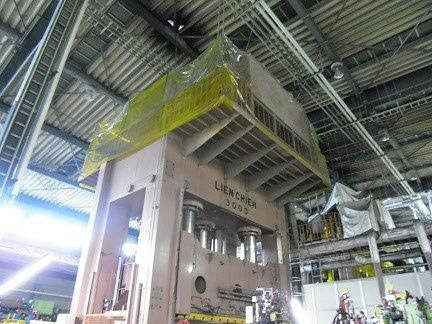

3,000 ton Hydraulic Press LIEN CHIEH(Taiwan) LHS-3000 Bolster 4,300 x 3,000mm 1997 for sale

  • Item: Hydraulic press
  • Maker: Lien Chien Machinery(Taiwan)
  • Model: LHS-3000
  • Year: 1997( Retrofitted 2007)
  • Cushion: 900 tons(Retrofitted 2017 by press maker in Taiwan)

Specifications

  • Main Press
  • Capacity(without leveling): 600-3,000 tons
  • Capacity(with leveling): 350-2,750 tons
  • Cushion: 900 tons(Retrofitted 2017 by press maker in Taiwan)
  • Working Pressure: 272 kg/㎠
  • Dia of the main ram: ∅530x5 units mm
  • Stroke: 2,500mm
  • Daylight: 3,200mm

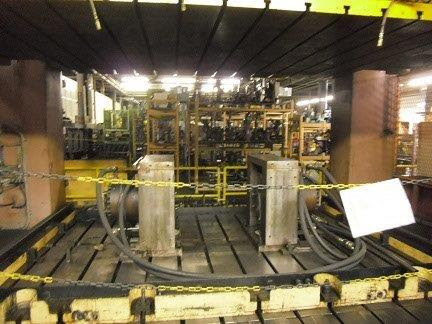

  • Area of Bolster:  4,300x3,000mm
  • Area of Slide Table: 4,300x3,000mm
  • Raising capacity: 80 tons
  • Working Pressure: 199 kg/㎠
  • Dia of the raising Ram: ∅160x2 units mm

  • Main press speed
  • Quick Down: 250 mm/s
  • Fast Pressing(300~600 tons): 10~30 mm/s
  • Pressing(w,000~3,000 tons): 1~8 mm/s
  • Quick up: 200 mm/s

  • Leveling system
  • Leveling capacity: 250 tons
  • Stripping capacity: 500 tons
  • Working pressure: 203 kg/㎠
  • Dai of the leveling ram: ∅280x4 units mm
  • Pressing speed: 1~8 mm/s
  • Stripping speed: 0.1~8 mm/s
  • Stroke: 100 mm

  • Pump and Motor
  • Main pump: A2V-500
  • Displacement: 575 1/min
  • Main Motor: 300HPx6Px3300Vx60Hz
  • Hold Pump IPH-2A-8
  • Displacement: 13.5 1/min
  • Hold Motor: 10HPx4Px200Vx60Hz
  • Leveling Motor: 60HPx4Px200Vx60Hz

  • Electric
  • Electric Power: 3300Vx60Hz, 200vx60Hz
  • Operation Electric Source: 100Vx60Hz

  • RETROFIT YEAR: 2007
  • Pressing(2000~3000ton): 1~8mm/sec
  • Quick up: 200mm/sec
  • Main Pump: AZV-500
  • Displacement: 575 1/min
  • Main Motor: 300HP×6P×3300V×60Hz
  • Pilot pump: PV2R12-8-26
  • Displacement: 14+45
  • Pilot motor: 10HP×4P×200V×60Hz
  • Main pump was changed into a brand-new Uchida(Japan make) in 2007.
  • Most of thing were changed by Japanese new ones.
