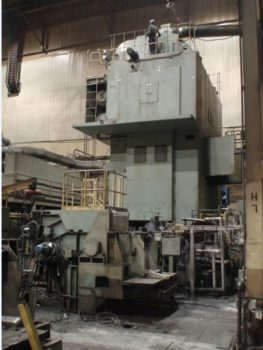

4,000 Ton National MP Mechanical Hot Forging Press

Hot Forging Press

Specifications



The following specifications are for the original machine including any known changes.
Discrepancies may exist between specifications and the current machine.
Machine Size 4000 MP
Shipped from Tiffin OH 2/11/1972
Strokes per minute 46
Stroke 15"
Shut Height 39"
Brake style Band
Electrical Specs 460V, 3Ph.
Machine is disassembled and ready for shipment.


Request a Quote

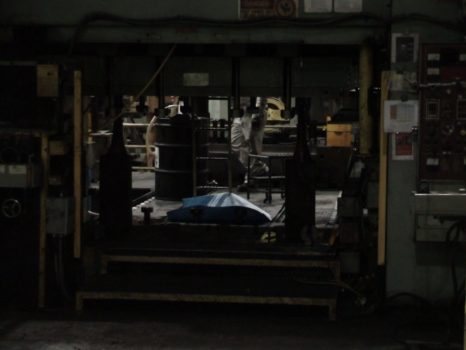

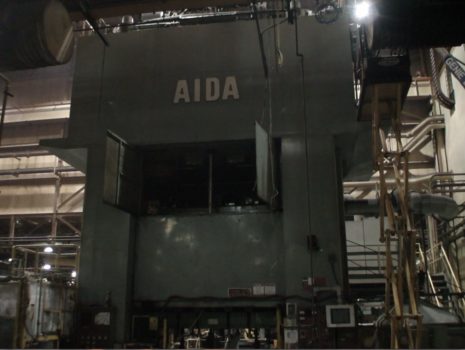

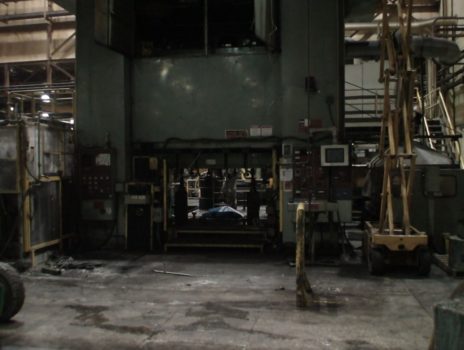

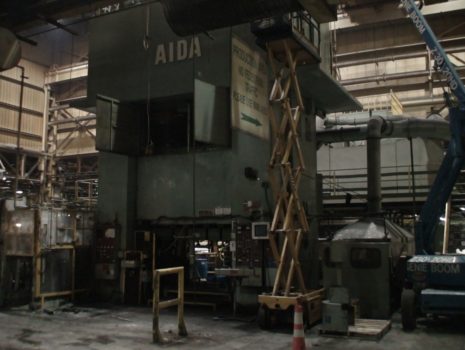

3000 Ton Aida Cold Forging Press

Specifications

  • AIDA 3000 Ton Cold Forging Press
  • MODEL#: FMX-L2-3000
  • 22.83" STROKE
  • 2" POWER RAM ADJUSTMENT
  • 47.24" SHUT HEIGHT
  • 14 - 20 SPM
  • 86.6" x 53.15" BED
  • 86.6" x 53.15" RAM
  • HYDRAULIC OVERLOADS
  • HYDRAULIC TIE ROD NUTS
  • MICRO INCHING
  • ROLLING BOLSTERS
  • LINK DRIVE
  • 1990
  • AIDA 3 AXIS TRANSFER SYSTEM
  • 54" WINDOWS
  • 185 KW(2) 480/3/60
  • GOOD CONDITION
  • Press is disassembled in plant

Request a Quote

Rolling Mill for Merchant ReBar and Round Products

The rolling mill is able to produce merchant  bars,and concrete re-inforcment (“re-bars”). By this generation of  the new rolling mill we can offer these new products including rebar, and small dimension merchant bars, as steel products for construction and manufacturing.

For a detailed presentation click here.

Specifications

Furnace Structure- Length: 23 m x Width 12.2 m

  • Front Loading
  • Lateral Discharge
Reheating systems for the Blooms: (Walking Beams)
  • Blooms to be rolled are heated to 1280 ˚C , and are heated in in 3 zones:
  • Preheating Zone at 1050˚C
  • Soak Zone at 1280˚C
  • Equialization Zone 1290˚C
Types of Product Loaded: The Blooms must have:
  • Cross Section ranging from 150x150mm to 520x400 mm.
  • Lengths ranging from 4 to 11 m.

Request a Quote

1,500 TON WATSON STILLMAN HYDRAULIC PRESS

Specifications

  • 4-post hydraulic forging press built in 1951
  • 55” stroke, and a 115” maximum daylight opening and a 78” x 72” bed/die area
  • The year it was operational at the plant was 1951
  • This has been used as a forging press and a straightening press

Request a Quote

96″ x 1/2″ x 80,000# Herr-Voss Cut to Length Line

We offer the following subject to “Supplementary Terms and Conditions of Sale”

Ref #: 102000



Width Capacity: 24 – 96″

Gauge: .040″ – to .565″

Coil Weight: 80,000 Lbs.

Coil ID Range 20-30″

Coil OD: 84″

Bundle Weight Maximum: 40,000 Lbs.

60″ – 480″ Length for .187″ – .500″

60 – 360″ Length for .060″ – .187″

Specifications

  • Coil Car and Storage Ramp
  • United Cone Uncoiler
  • Peeler/Holddown/Pinch Roll Unit
  • Large Pinch Rolls
  • Herr-Voss Leveler - Corrective Heavy Leveler
  • Type Model VKL 102/5.5-9/5 4HI, LH
  • Thickness Range: .187"-.565"
  • 200 HP DC Motor
  • Light Herr-Voss Leveler (on Slidding Base for 74" Width Material)
  • Max Product Width: 76"
  • Herr-Voss Corrective Leveler
  • .040 - .187" x 76" Width
  • Model: VKL 84/2.687/17/7-4HI
  • 2.687" Roll Dia. x 84" Wide
  • 200 HP DC Drive
  • Machine Mounted on a Sliding Base to accommodate wider material on the line
    Shear:
  • Cincinnati Mechanical with Air Clutch & Brake
  • 96" Wide Belt Conveyor Section
  • 45' Long
  • Spare Shear Blades
  • 16" Dia. Exit Pinch Rolls
  • Stacker
  • 240" Side Plates
  • 36' Long Back Stop
  • Flat Chain Design for Pallets
  • Complete Line with Hydraulics, Electrics and Controls
  • Installed

Request a Quote

VACUUM DEGASSER VD2

Vacuum Degasser VD1. Vacuum Degasser system for ladles upto 120 tons. Steam Vacuum pump.

Specifications

TECHNICAL FEATURES

  • Installation year 2001
  • supplier SMS – DEMAG
  • Vacuum feeding source Steam
  • Type of ladle 101 – 120 Ton.
  • Ladle free board 501 – 1300 mm
  • Steam thermodynamic conditions temp=220°C press=0,8MPa Capacity=13,5ton/h
  • Vacuum creation system 4-stage steam ejector pumps
  • Suction capacity 350KG/h air, T=20°C , P=0,67mbar
  • Treatment time and pression 19 min P<2mbar
  • Vacuum tank dimensions diameter 6000 height 5600
Click Here for more specifications.

Request a Quote

VACUUM DEGASSER VD1

Product Description

Vacuum Degasser VD1. Vacuum Degasser system for ladles upto 120 tons. Steam Vacuum pump.

Specifications

TECHNICAL FEATURES

  • Installation year 1998
  • revamping year –
  • supplier SMS – DEMAG
  • Vacuum feeding source Steam
  • Type of ladle 100 – 120 Ton.
  • Ladle free board 500 – 1300 mm
  • Steam thermodynamic conditions temp=220°C press=0,8MPa Capacity=10,5ton/h
  • Vacuum creation system 4-stage steam ejector pumps
  • Suction capacity 350KG/h air, T=20°C, P=0,67mbar
  • Treatment time and pression 18 min P<2mbar
  • Vacuum tank dimensions diameter 6000 height 5600
Click Here for more specifications.

Request a Quote

TRT SYSTEM

Product Description
The TRT is a machine that exploits the flow and the pressure of the furnace output gas to produce electric energy. Through a system of regulation managed by PLC it maintains the back pressure of BLT to the desired value.

Specifications

TECHNICAL FEATURES

  • Installation Year 2003
  • Supplier SMS Demag
  • Power to the turbine shaft 11.430 kW
  • Power at the generator terminals 11.150 kW
  • Performance of turbine-reduction unit 0,825
  • Generator efficiency (full load), 0.8 Costs >=97,5%
  • Turbine rotation speed 3.000 rpm
  • Generator rotation speed 1.500 rpm
Click Here for more specifications.
