HPM 500-TON CU-1 Downstroke Housing Type hydraulic press

Hydraulic Press

500 TON HPM HYDRAULIC PRESS
MODEL CU-1

  • Downstroke Housing Type – Ti e Rod C o n s t r u c t i o n – Floor Standing
  • D i s t a n c e Between H o u s i n g s : 3 7 ” L – R
  • B e d A r e a ( N o m i n a l ) : 36″ L-R X 24″ F-B
  • Powered S l i d i n g Bed B o l s t e r : 2 8 ” L – R x : 28″ F-B ( T- S l o t t e d )
  • S l i d e Area (Nominal): 3 6 ” L – R X 2 4 ” F – B
  • S l i d e B o l s t e r : 36″ L-R X 24″ F-B X 2″ Thick
  • S t r o k e o f G i bG u i d e d S l i d e : 0 – 2 4 ” Maximum
  • Daylight Opening (Total): 36″ Maximum
  • D a y l i g h t Between S l i d i n g B o l s t e r a n d S l i d e B o l s t e r : Assembly
    25″ Maximum
  • Main Ram D i a m e t e r : 2 2 ” / 2 1 . 2 5 ” @ 2635 PSI – 500 Tons
    F l o o r t o To p of Bed: 3 0 “
  • Power Unit (Top Rear of Press) : HPM Model 7R-200 R a d i a l Piston Pump,
  • 95 GPM @ 3000 P S I Maximum
  • Driven by 100 HP 880 RPM
    4 4 0 / 3 / 6 0 Motor
  • Speeds Approx.: 860″/Min. Closing
  • 57″/Min. Pressing t o 500 Tons
  • 860″/Min. Return t o 350 Tons
  • C o n t r o l s : Pushbutton Operation With Stroke,
  • P r e s s u r e and Speed C o n t r o l
  • O p e r a t o r Palm B u t t o n s
  • Light C u r t a i n
  • Weight a p p r o x . 68,000#
  • o v e r a l l D i m e n s i o n s Approx. 100″ L-R x 156″ F-B x 190″ H
  • S e r i a l N o . N / A (WLEF)
  • S t o c k No. 11033





Specifications

Diagram Specification Image Map 1 Downstroke Housing Type - Tie Rod Construction Floor Standing Weight: 68,000# Dimensions: 100" L-Rx 156" FB x 190"# Stock No: 11033

Request a Quote

DANIELI-MORGARDSHAMMAR RE-BAR MILL

Specifications

  • Year- 2015
  • Capacity 500,000 Metric Tons Per Year
  • Feed Stock 160 x 160mm Billets
  • Product size 10-51mm
  • Product Length 6000 – 12000mm
  • Bundle Weight 2.1 Ton
Mill consists of:
  • 90 TPH Walking Beam Reheat Furnace
  • Roughing Stands (Qty 6)
  • Crop Shear
  • Intermediate Stands (Qty 6)
  • Crop Shear
  • Finishing Stands (Qty 6)
  • Quenching and Self –Tempering of Bars (QBT System)
  • Dividing Shear
  • Cooling Bed
  • Inspection
  • Cold Shear
  • Sund Birsta Bundling and Binding Machines
  • Weight Cell and Bar Counting
  • Cassettes
  • Large Inventory of Spare Rolls and Guides
  • Atomat ‘AT830’ and ‘AT820’ CNC Notching and Marking Machines
  • Overhead Cranes
  • Spare Parts
  • Manuals and Documentation

Request a Quote

800 Ton Blow SSDC Press – Straight Side Double Crank

Specifications

  • CAPACITY: 800 TONS
  • MODEL NO: SC2-800-72-72
  • STRIKE: 8”
  • SHUT HEIGHT (S.D.A.U.) OVER THE BOLSTER: 37”
  • SLIDE ADJUSTMENT: 12”
  • BED AREA: 72” L-R X 72” F-B
  • SLIDE AREA: 72” L-R X 72” F-B
  • PRESS APEED: 20-40 SPM
  • APPROX. TOTAL WEIGHT: 183,000 LBS.
  • YEAR OF MANUFACTURE: 2000
800 Ton Blow stamping press 800 Ton Blow stamping press 800 IN BLOW SSDC Press Straight Side

Request a Quote

650,000-800,000 TONS PER YEAR WIRE ROD MILL FOR SALE IN EUROPE

  • We stopped the installation in April 2016 and started the dismantling in January 2018 and finished in August 2018.
  • In the package there are all the WRM parts, mechanical and electrical, spares and aux tools.
  • Electrical parts are good package. Practically all the PLC system are siemens S7 and stands. DC motor drives are ABB with INDAR DC motors. (525V).
  • Stelmor cooling roller table Structure are out of scope.
  • Transformers for DC drives are out of scope (30000/525V).
  • Attached some photos about equipment and warehouse where they are stored. All electrical equipment package is completely closed (white boxes in photo). Attached is WRM layout.
  • Billet Sizes we have used are: 160x160x11,600mm and 210x160x11,600mm.



650,000-800,000 tons per year wire rod mill

Specifications

-The total weight is in the packing list, 3000 Tons more or less.

This wire rod mill is a semicontinous mill. The billets are free between roughing mill and first Intermediate. The roughing mill is 2 times faster than 1st Intermediate and 1st Intermediate are Horizontal stands ready for two strands. Stands are housing-less type.

The mill is dismantled and packed in boxes ready for immediate shipment.

See links below for more:

Request a Quote

2,000 Ton Macrodyne Model MPH2000 Hydraulic Press

Specifications

  • 2002 Macrodyne Model MPH2000 Hydraulic Press
  • Capacity 2000 Ton/li>
  • Bed size 118”x70”/li>
  • Daylight 98”/li>
  • Stroke 70” Control/li>
  • Panel, With (3) Motoman UP165-100 Robots with Controllers/li>
  • (2) Motoman UP50 Robots with Controllers/li>
  • (3) Skids of Metal Grating, Drip Trays and Metal Stands, with Accessories/li>
For more images click here.

Request a Quote

1,500 Ton Macrodyne Hydraulic Press

Specifications

NEW ............................ 2004
CAPACITY ....................... 1500 TON
LIFTING FORCE .................. 12 TONS
STRIPPING FORCE ................ 100 TON
BED SIZE ....................... 54" X 144"
BETWEEN FRAME .................. 56" X 76"
STROKE ......................... 16"
OPEN HEIGHT .................... 32"
CLOSED HEIGHT .................. 16"
PASS LINE ...................... 38"
FAST APPROACH .................. 7.5" @ 100 IPM
PRESSING SPEED ................. 5" @ 6 IPM
FAST RETURN .................... 8" @ 100 IPM
TOTAL CYCLE TIME ............... 15 SECONDS
CONTROL ........................ ALLEN BRADLEY MICROLOGIX 1500 PLC
HYDRAULIC SYSTEM ............... 3900 PSI
HYDRAULIC MOTOR ................ 60 HP

Request a Quote

5000 TON BLISS HS-5000-4R-84-204 HYDRAULIC PRESS

Specifications

Serial #  CN-1889

See Order Here

Manufactured 1955-56 for the U.S. government – kept in storage

First installed and put into operation in 2000

Model:  HS-5000-4R-84-204

Type……………………………………Hydraulic

Tonnage………………………………..5,000

Cushion………………………………...0

Bed……………………………………..204” X 84”

Ram…………………………………….204” X 84”

Stroke…………………………………..48”

Shut Height…………………………….84”

Daylight………………………………..132”

Bolster………………………………….0

Between Posts…………………………86” x 86”

Post diameter………………………….24”

Speeds

Condition………………………………GOOD

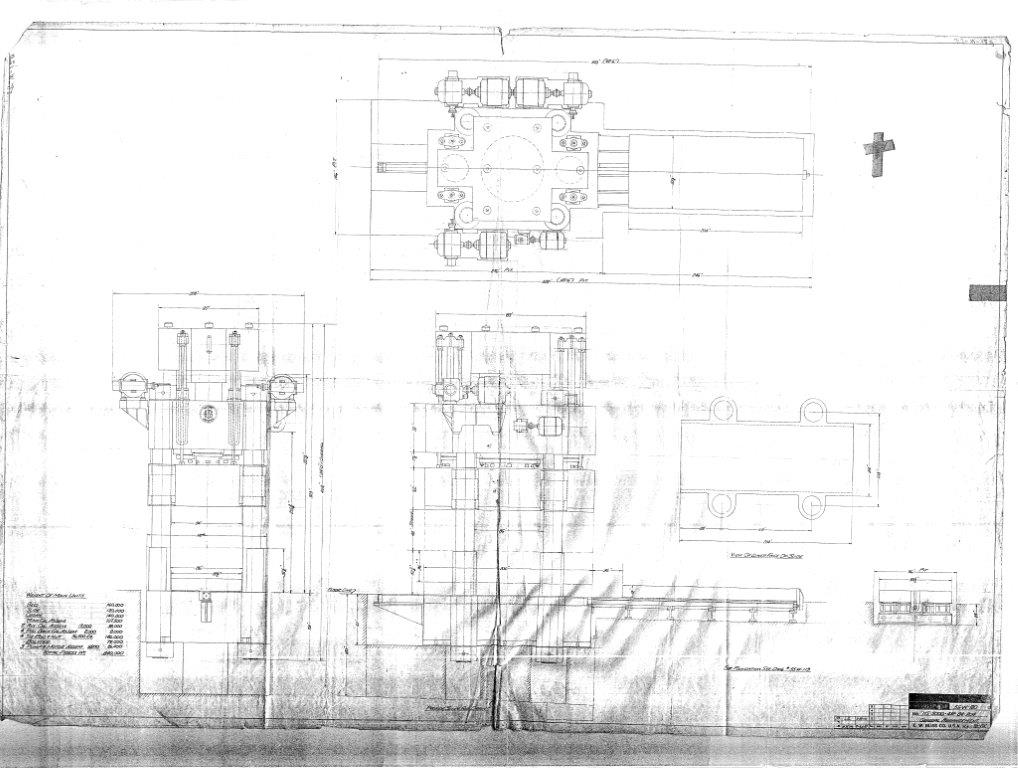

For drawing, Click Here!

Request a Quote

3,000 ton Hydraulic Press LIEN CHIEH(Taiwan) LHS-3000 Bolster 4,300 x 3,000mm 1997 for sale

  • Item: Hydraulic press
  • Maker: Lien Chien Machinery(Taiwan)
  • Model: LHS-3000
  • Year: 1997( Retrofitted 2007)
  • Cushion: 900 tons(Retrofitted 2017 by press maker in Taiwan)

Specifications

  • Main Press
  • Capacity(without leveling): 600-3,000 tons
  • Capacity(with leveling): 350-2,750 tons
  • Cushion: 900 tons(Retrofitted 2017 by press maker in Taiwan)
  • Working Pressure: 272 kg/㎠
  • Dia of the main ram: ∅530x5 units mm
  • Stroke: 2,500mm
  • Daylight: 3,200mm
  • Area of Bolster:  4,300x3,000mm
  • Area of Slide Table: 4,300x3,000mm
  • Raising capacity: 80 tons
  • Working Pressure: 199 kg/㎠
  • Dia of the raising Ram: ∅160x2 units mm

  • Main press speed
  • Quick Down: 250 mm/s
  • Fast Pressing(300~600 tons): 10~30 mm/s
  • Pressing(w,000~3,000 tons): 1~8 mm/s
  • Quick up: 200 mm/s

  • Leveling system
  • Leveling capacity: 250 tons
  • Stripping capacity: 500 tons
  • Working pressure: 203 kg/㎠
  • Dai of the leveling ram: ∅280x4 units mm
  • Pressing speed: 1~8 mm/s
  • Stripping speed: 0.1~8 mm/s
  • Stroke: 100 mm

  • Pump and Motor
  • Main pump: A2V-500
  • Displacement: 575 1/min
  • Main Motor: 300HPx6Px3300Vx60Hz
  • Hold Pump IPH-2A-8
  • Displacement: 13.5 1/min
  • Hold Motor: 10HPx4Px200Vx60Hz
  • Leveling Motor: 60HPx4Px200Vx60Hz

  • Electric
  • Electric Power: 3300Vx60Hz, 200vx60Hz
  • Operation Electric Source: 100Vx60Hz

  • RETROFIT YEAR: 2007
  • Pressing(2000~3000ton): 1~8mm/sec
  • Quick up: 200mm/sec
  • Main Pump: AZV-500
  • Displacement: 575 1/min
  • Main Motor: 300HP×6P×3300V×60Hz
  • Pilot pump: PV2R12-8-26
  • Displacement: 14+45
  • Pilot motor: 10HP×4P×200V×60Hz
  • Main pump was changed into a brand-new Uchida(Japan make) in 2007.
  • Most of thing were changed by Japanese new ones.

Request a Quote

1,600 Ton Erie mechanical hot forging press built in 1980 t

Specifications

Capacity 1600 tons @ 1/8" up
Stroke - Ram 12"
Main Shaft Diameter At Journals 18"
Main Shaft Diameter At Eccentric 28-1/4"
Width of Eccentric Bearing
Shut Height With Top Knockout Plate 34-1/2"
Shut Height With Top Knockout Plate in Place 30"
NOTE: Shut Height Is With Wedge Adjusted 1/4" Up/Stroke Down
Strokes Per minute (Continuous) 65
Distance Between Columns 39-3/8" R-L; 30" F-B
Die Seat R-L x F-B 39-3/8" x 43"
Ram Face R-L x F-B 38" x 38"
Lower Knockout Stroke 5/8"
Upper Knockout Stroke 3/4"
Floor Space R-L x F-B l0' 6" x 10" 6-1/4"
Height Above Floor 15' 3-1/2"
Distance Below Floor 36-7/8"
Standard Motor Horsepower 100
Approximate Net Weight 188,000 Lbs.
