Used Machinery

Tagliaferri Melt Shop

(AC Arc Furnace)

The furnace is designed as an AC arc furnace:

To support the melting process, we have the BSE technology 3 lateral combined oxygen gas burners in operation, plus 3 post combustion burner + 1 lance manipulator with 3 probes (oxygen, carbon and lime).

Specifications

  • Manufacturer: Tagliaferri
  • Construction year: 1997
  • Type: AC Furnace EBT
  • Transformer: 96 MVA
  • Current: 56 KA max
  • Voltage: 850 V
  • Electricity Consumption: 370 KWh/t
  • Electrode Diameter: 550 mm
  • Heat Weight: 85t
  • External Diameter: 5.6 metres
  • Capacity: 115t/h

Request a Quote

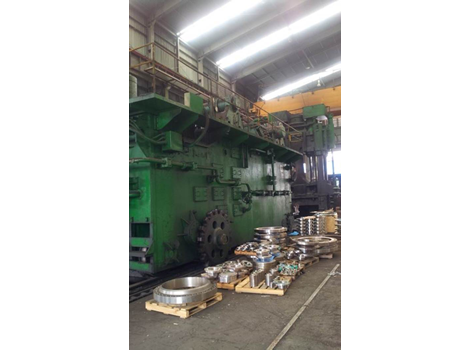

RHEINSTAHL WAGNER RING ROLLING MILL

(3000 mm)

Specifications

  • WAGNER built in Dortmund, Germany
  • Located in Korea.
  • All of the mechanical parts of the machine were rebuilt in the year 2005
  • Electric and hydraulic parts of the machine are all brand new in the year 2005

Request a Quote

Stanko Vertical Boring Mill

(Model 1540)

Table rebuilt in 2009

Specifications

  • (2) rams
  • 157.5” dia. table
  • (4) boring mill jaws
  • 162” swing
  • 88.42” under rail
  • 63” vertical ram travel
  • 0.37-34 rpm
  • Tracer Attachment
  • Pendant Control
  • s/n 20

Request a Quote

STANKO VERTICAL BORING MILL

(Model KYF14F)

Specifications

  • (2) rams
  • 157.5” dia. table
  • (4) boring mill jaws
  • 157.5” swing
  • 108” under rail
  • 220,450 lbs. table cap.
  • 71” vertical ram travel
  • 0.37-34 rpm
  • 276hp total power
  • Allen Bradley PLC
  • Tracer Attachment in Box
  • Pendant Control
  • S/N 217
  • Note: installed as a new machine in 1998

Request a Quote

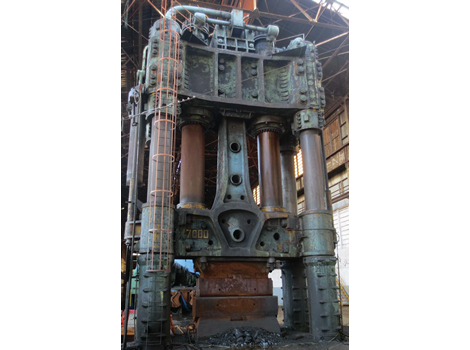

7,000 ton DOMINION ENGINEERING HYDRAULIC FORGING PRESS

(Open Die, 4 Post)

*Note Pumps Damaged In Fire And Need To Be Replaced

Specifications

  • (2) 38.5” Dia.Hydraulic Rams With 10’6” Stroke
  • 20’ Daylight
  • (2) 16” Dia. Push Backs
  • 6,000 PSI Main Ram Fluid Pressure (2,500 Psi Push Backs)
  • 20’ (L-R) & 8’ (F.B.) Column Centres
  • S/N: 330-250
  • (2) Independent Structure Inspections Completed. (Available Upon Request)

Request a Quote
